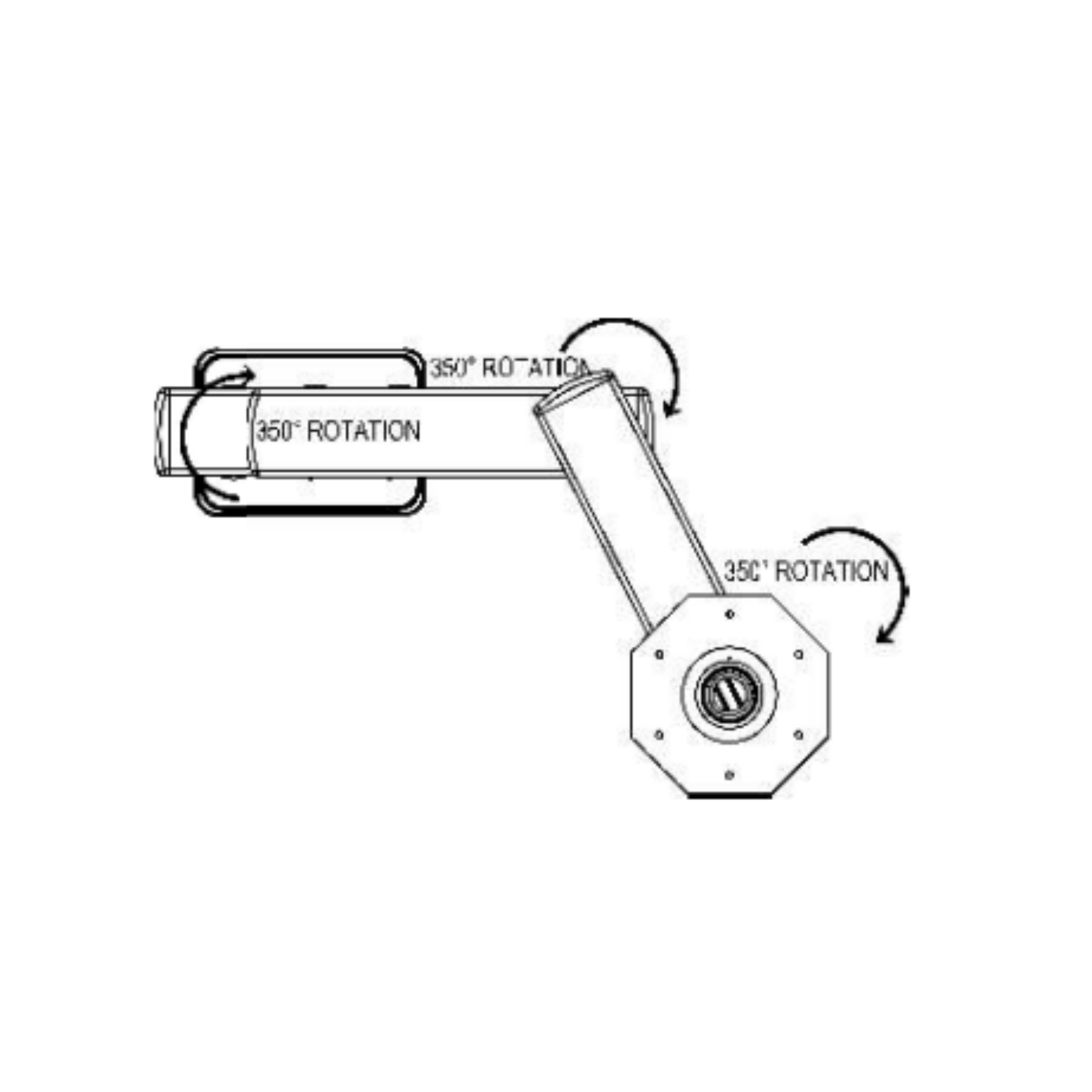

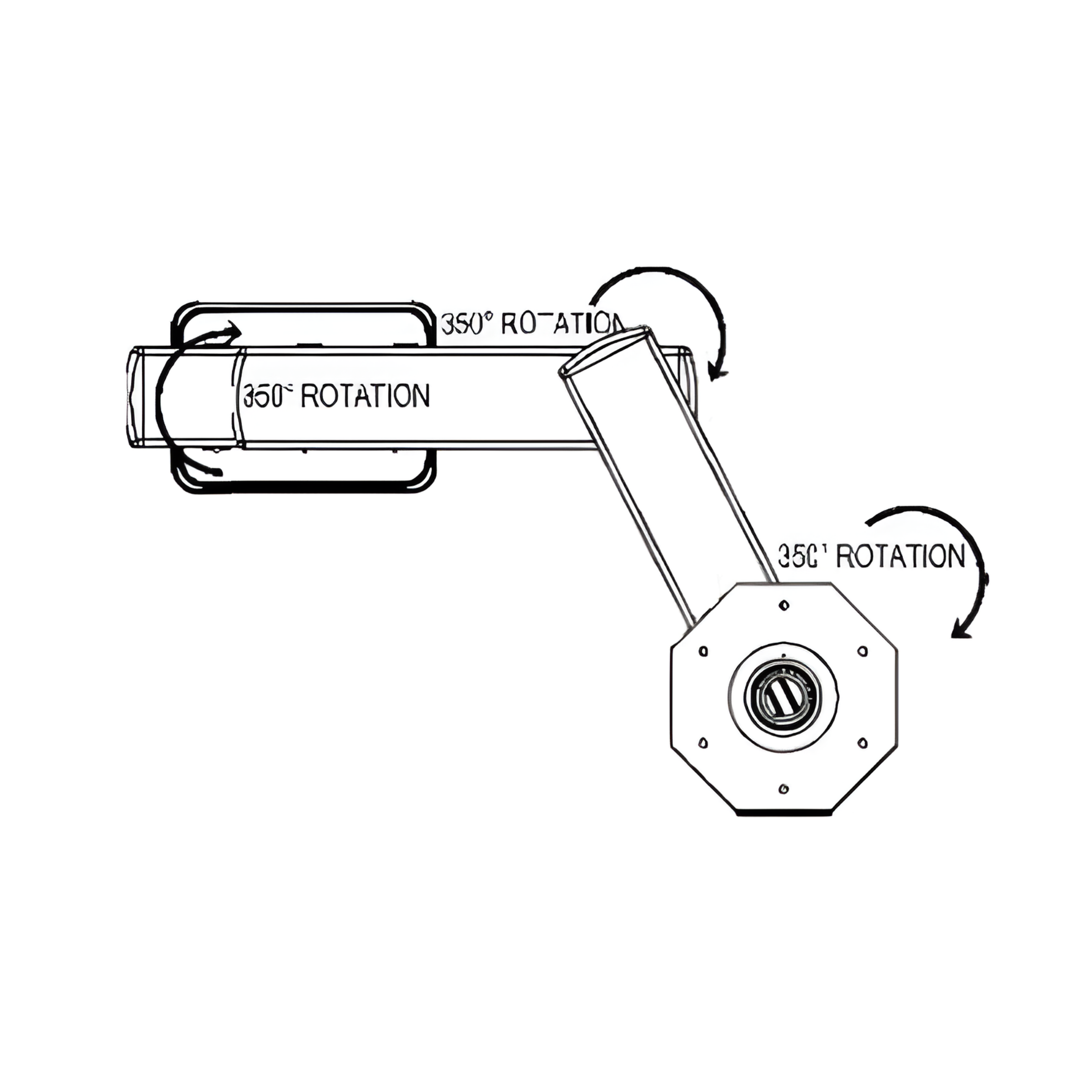

Installation Space: Mounted on the ceiling by straight connection support and rotatable around its vertical axis up to 350 degrees.

Accessories: Gas outlets, instrument basket, vacuum carrier. Monitor Stand/Drawer/Trays.

Spread the love

Description

Technical Specifications
Product Code	ALT -606

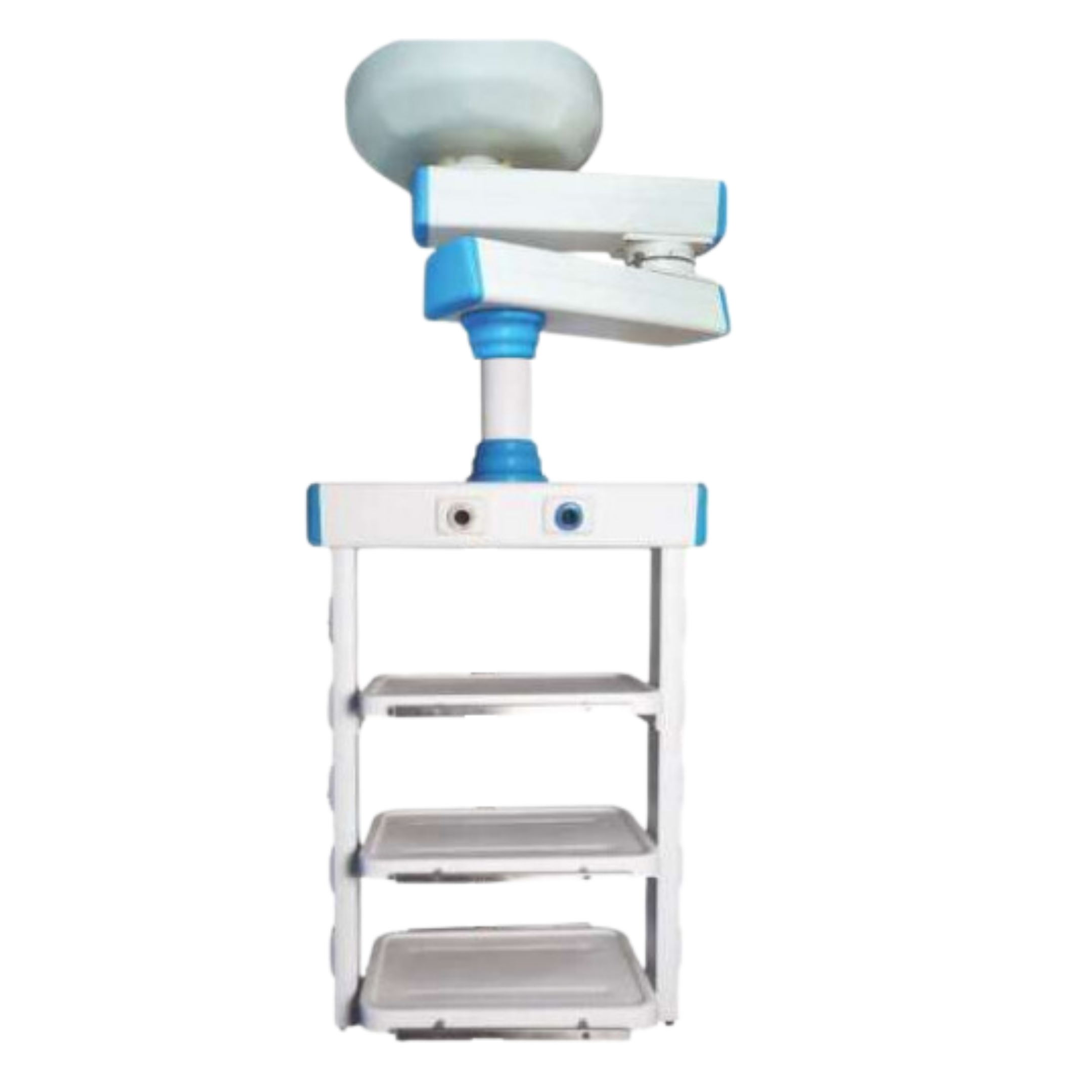

Product Name	Double Arm laparoscopic / Anesthetic Pendant
Carriage Capacity	Max 100 Kg

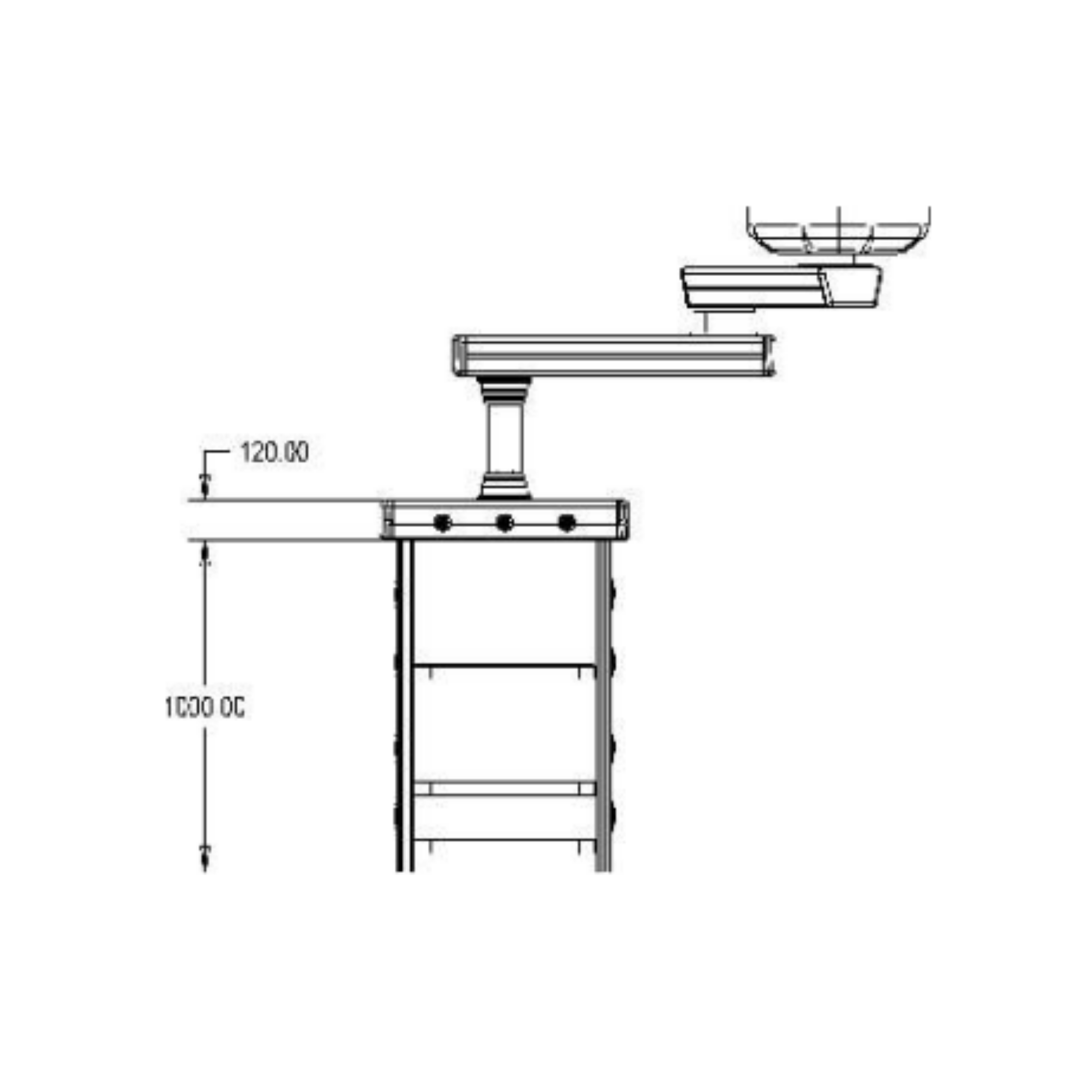

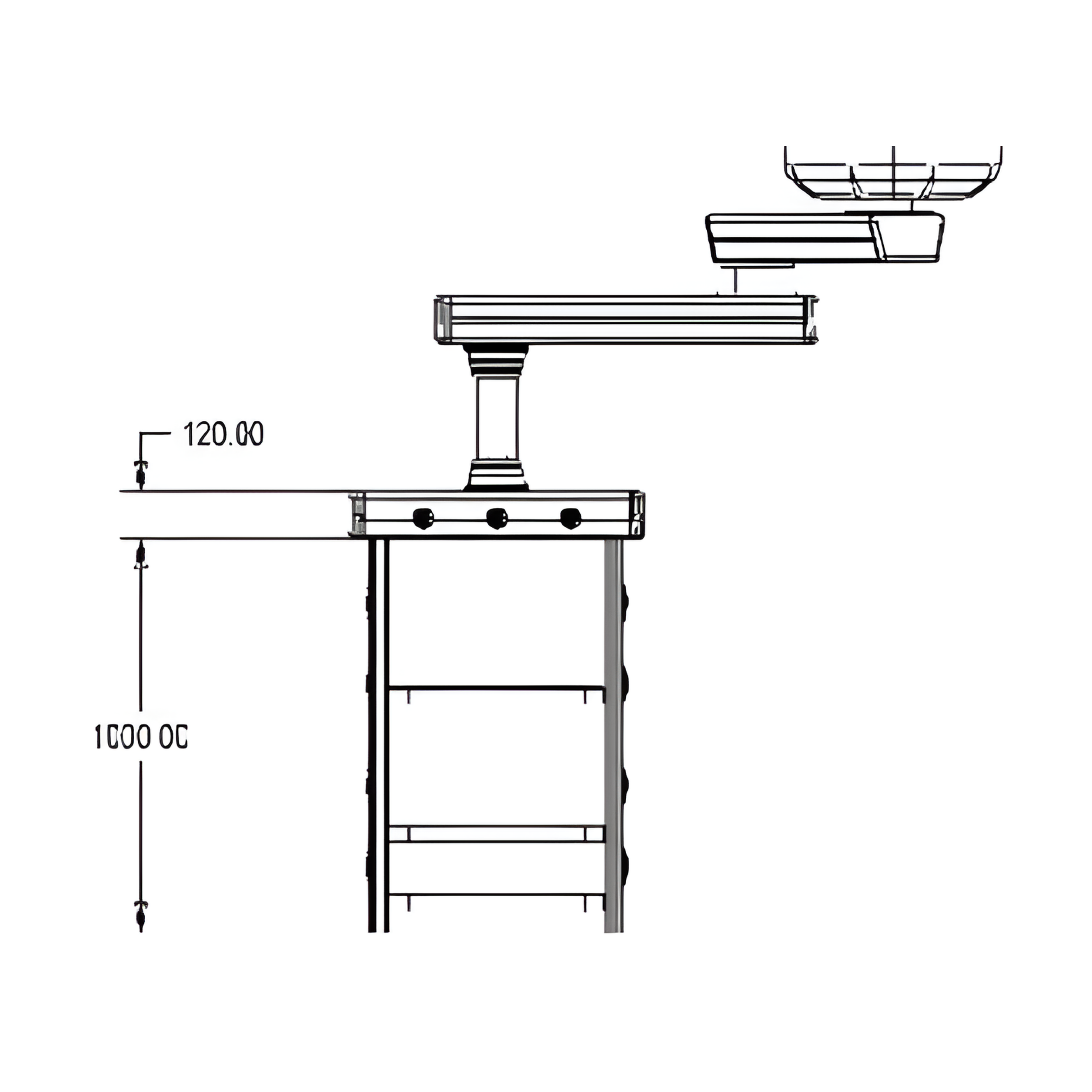

Vertical Movement	650 mm
Gas Equipment	Variable according to project
Electrical Equipment	8 X Electric Sockets, 4 X Electric Sockets (optional)
Operating Temperature	(+10) - (+45) C o
Power Supply	220 V 50 Hz
Horizontal Arm Length	2 x 800-1 mm
Packaging Type	Wrapped Package /wooden packing with extra charge.
Package Sizes	1520 x 780 x 510 mm & 1120x140x260mm& 1070x140x260mm & Size of upper ceiling Mounting part
Product Weight	163Kg
Product Main Raw Material	Aluminum Extrusion Profile high impactive ABS With SS304 Screws
Color	Single /Dual color combination or as per requirement
Trays	2 (adjustable)
