Description
| Technical Specifications | |
|---|---|
| Product Code | ALT -611 |

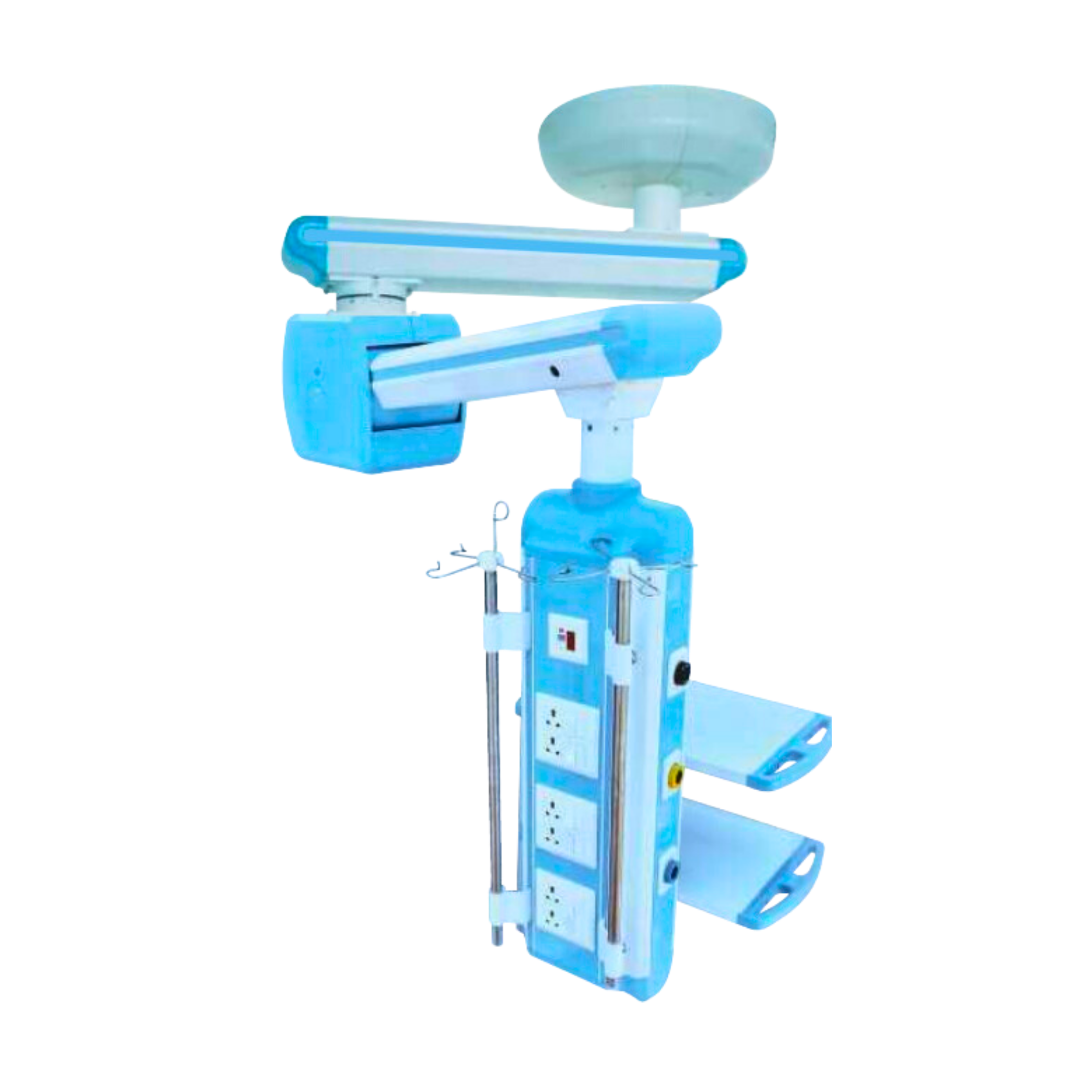

| Product Name | Modular Electric Double arm Pendant |
| Carriage Capacity | Max 120 Kg |
| Vertical Movement | 650 mm |
| Gas Equipment | Variable according to project |
| Electrical Equipment | 6 X Electric Sockets, (optional) |
| Operating Temperature | (+10) - (+45) C0 |
| Power Supply | 220 V 50 Hz |
| Horizontal Arm Length | 80-100 cm |
| Packaging Type | Wrapped Package /wooden packing with extra charge. |
| Package Sizes | 1150 x 620 x 700 mm & 1120x140x260 mm & Size of upper ceiling Mounting part |
| Product Weight | 210Kg & Upper ceiling connection part |
| Product Main Raw Material | Aluminum Extrusion Profile with high impactive ABS With SS304 Screws |
| Configured | with pneumatic brake |
| Movement | 21 degrees up and 24 degrees down |
| Color | Single [Dual color combination or as per requirement |
| Trays | 2 to 5 ( adjustable) |
