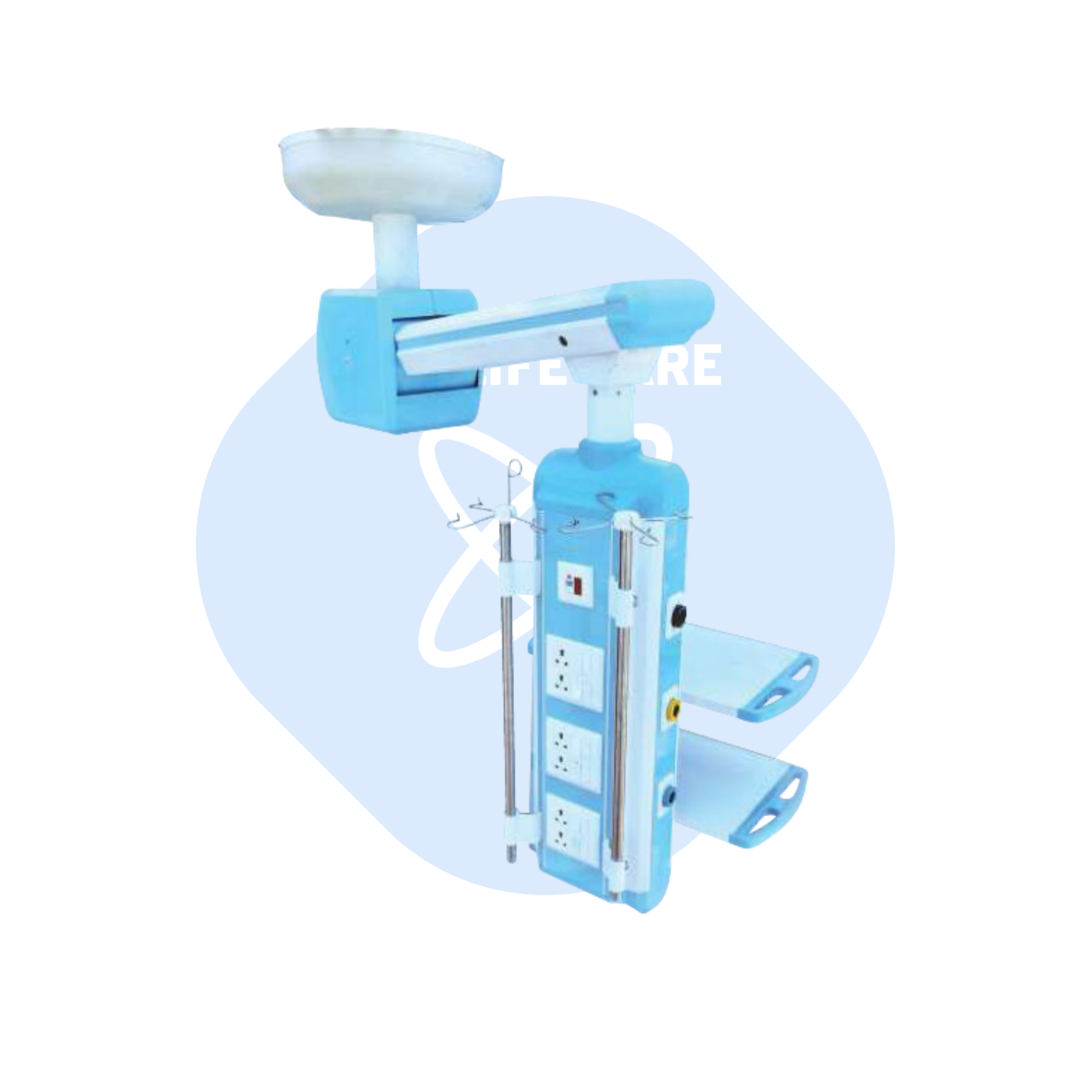

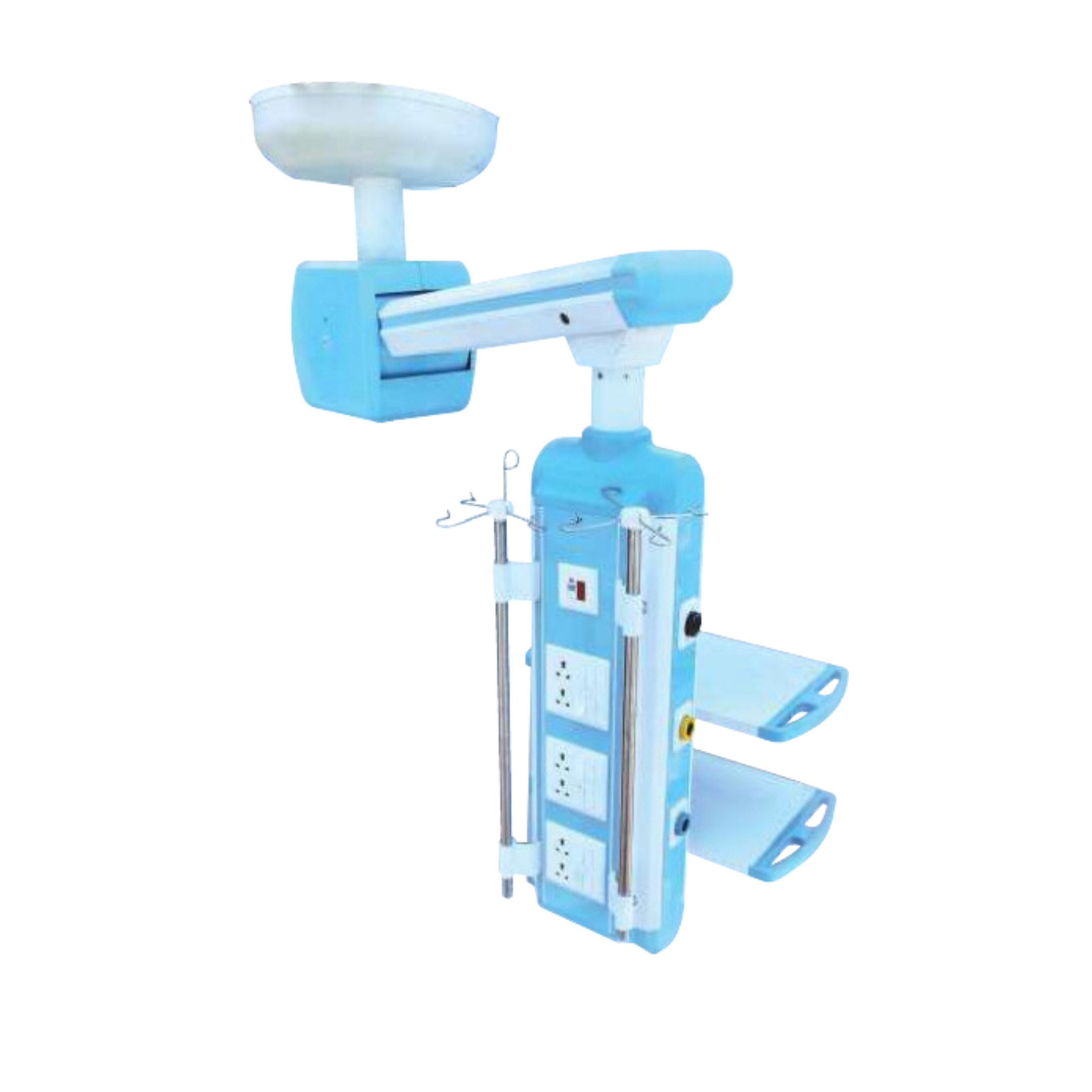

Modular Electric Single Arm Pendant

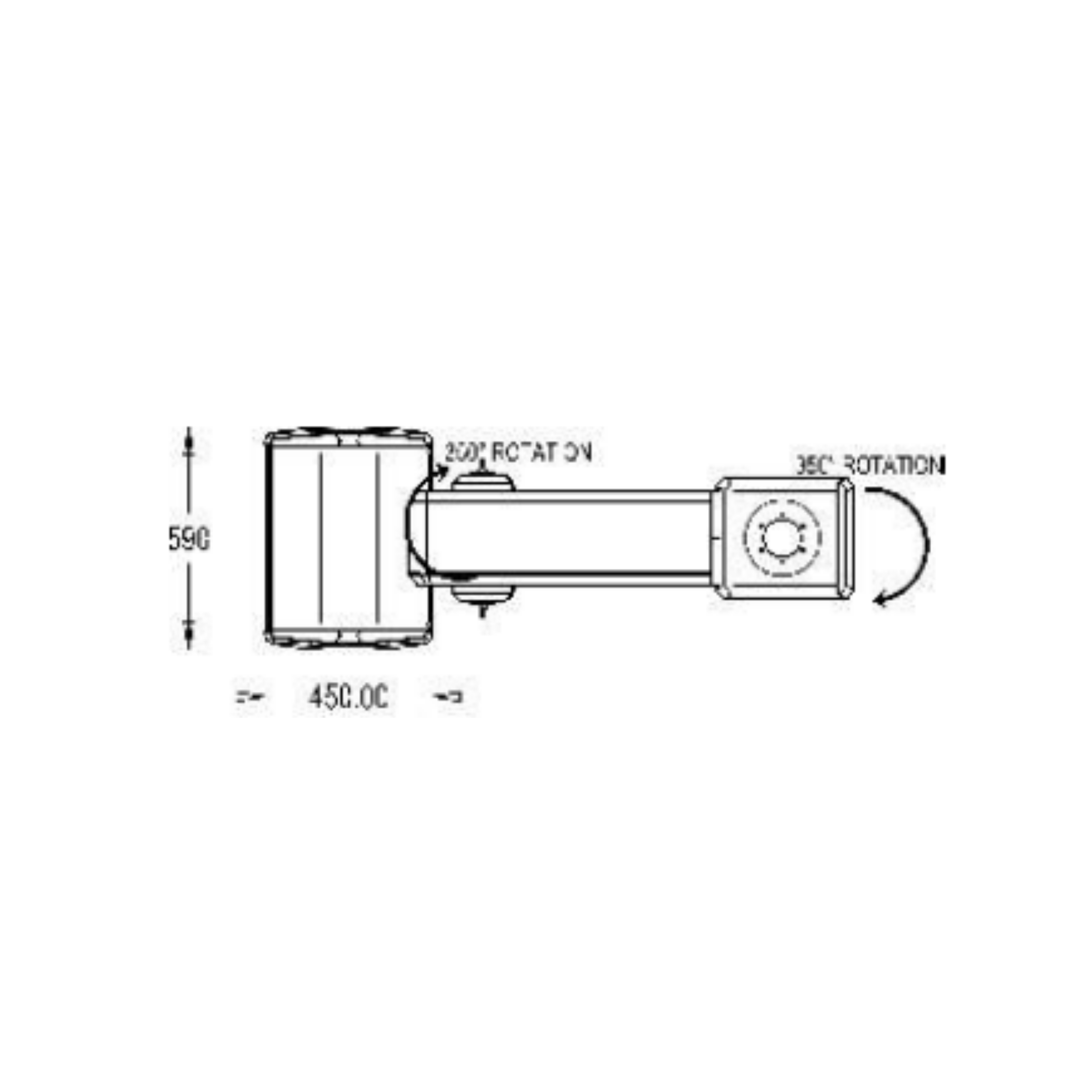

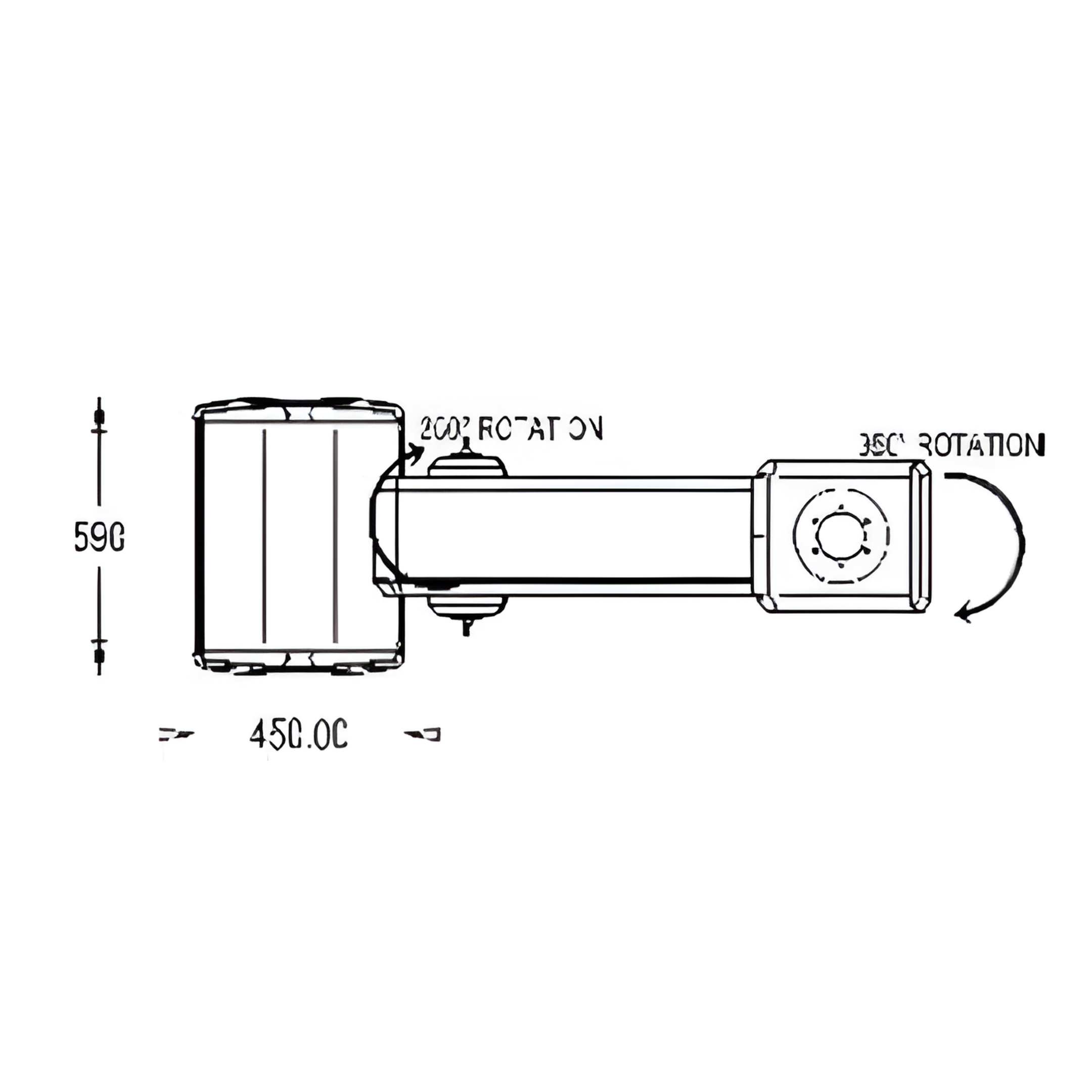

Installation Space: Mounted on the ceiling by straight connection support and rotatable around its vertical axis up to 350 degrees.

Accessories: Gas outlets, Instrument basket, Vacuum carrier Breaking System.

Category: Chronic Care

Spread the love

Description

Technical Specifications
Product Code	ALT- 610
Product Name	MODULAR ELECTRIC SINGLE ARM PANDANT
Carriage Capacity	Max 150 Kg
Vertical Movement	650 mm
Gas Equipment	Variable according to project
Electrical Equipment	6 X Electric Sockets, (optional)
Operating Temperature	(+10) - (+45) C0
Power Supply	220 V 50 Hz
Horizontal Arm Length	80-100 cm
Packaging Type	Wrapped Package [wooden packing with extra charge.
Package Sizes	1150 x 620 x 700 mm & 1120x140x260 mm & Size of upper ceiling Mounting part
Product Weight	180Kg
Product Main Raw Material	Aluminum Extrusion Profile high impactive ABS With SS304 Screws
Color	Single [Dual color combination or as per requirement
Trays	2 (adjustable)
