Description
| Technical Specifications: | |
|---|---|
| Product Code | ALT- 608 |

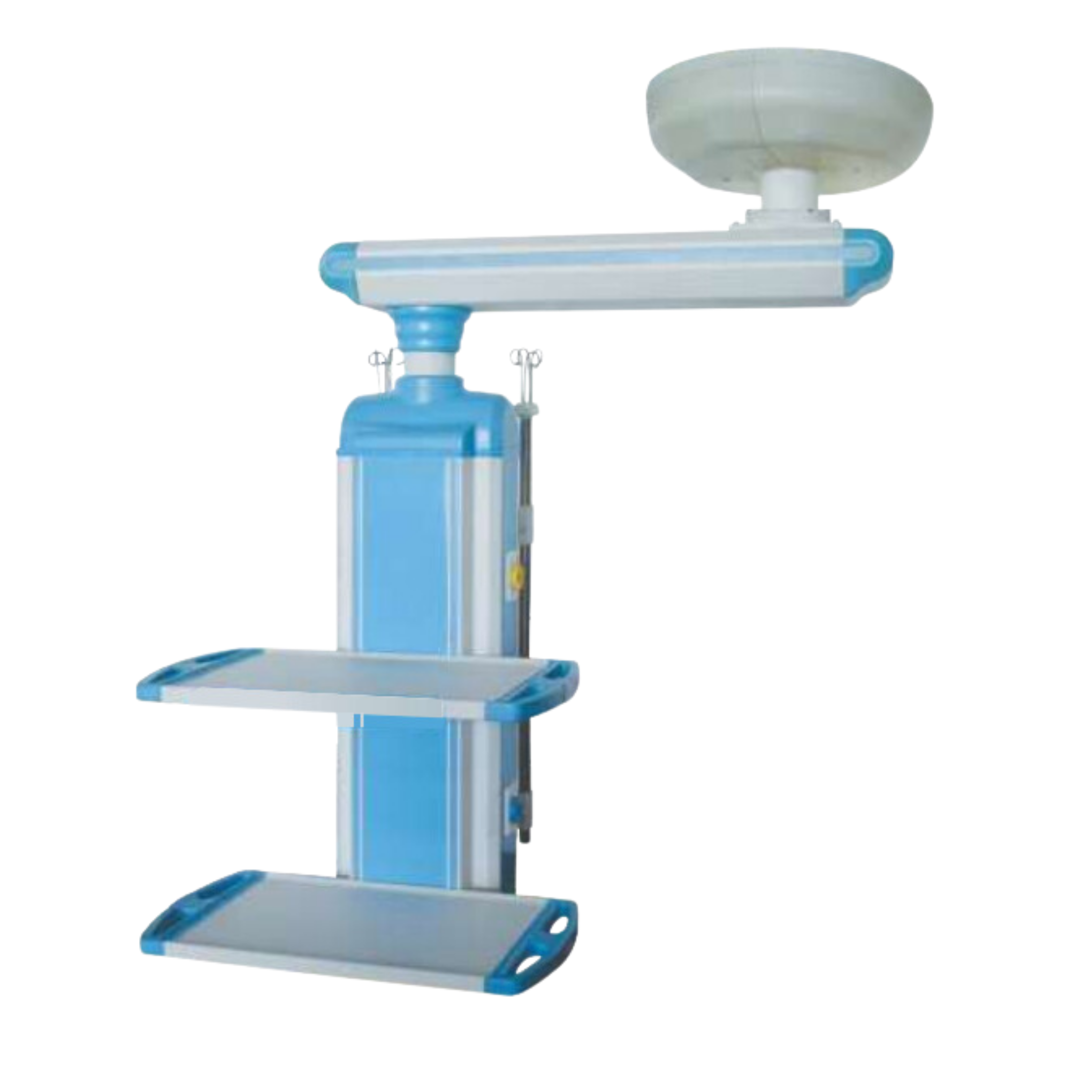

| Product Name | Single Arm Pendant- Standard |
| Number of Joints | 2 |
| Carriage Capacity | Max 180 Kg |
| Gas Equipment | Variable according to project |
| Electrical Equipment | 8 X Electric Sockets (optional) |
| Operating Temperature | (+10) - (+45) C o |
| Power Supply | 220 V 50 Hz |

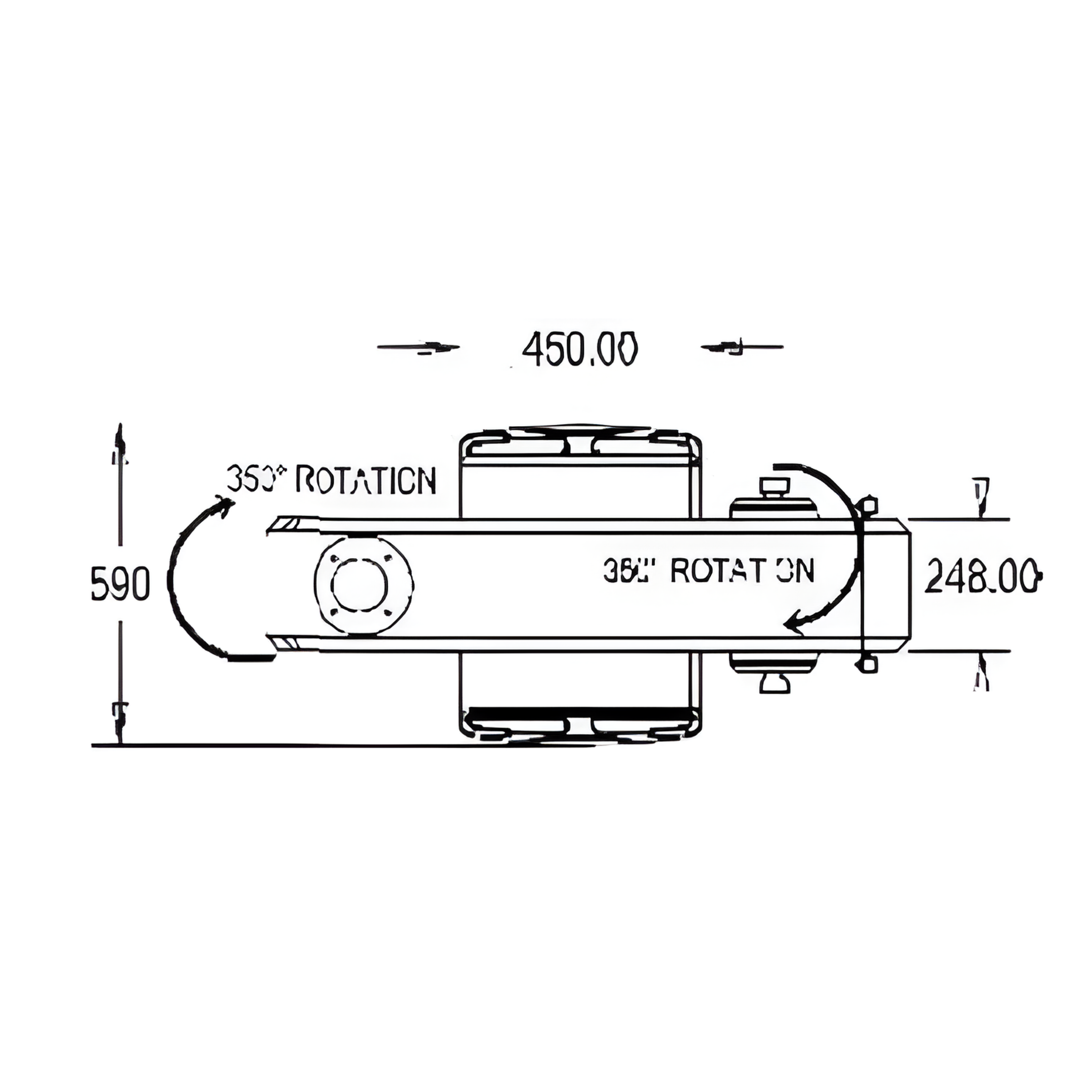

| Horizontal Arm Length | 600-1200 mm |
| Packaging Type | Wrapped Package [wooden packing with extra charge. |
| Package Sizes | 800 x 620 x 700 mm & 1070xI 40x260 mm & size of upper ceiling Mounting part |
| Product Weight | 120Kg |
| Product Main Raw Material | Aluminum Extrusion Profile high impactive ABS With SS304 Screws |
| Color | Single /DuaI color combination or as per requirement |
| Bricking System | pneumatic brake/ Electric Brake optional |
| Trays | 2 (adjustable) |
