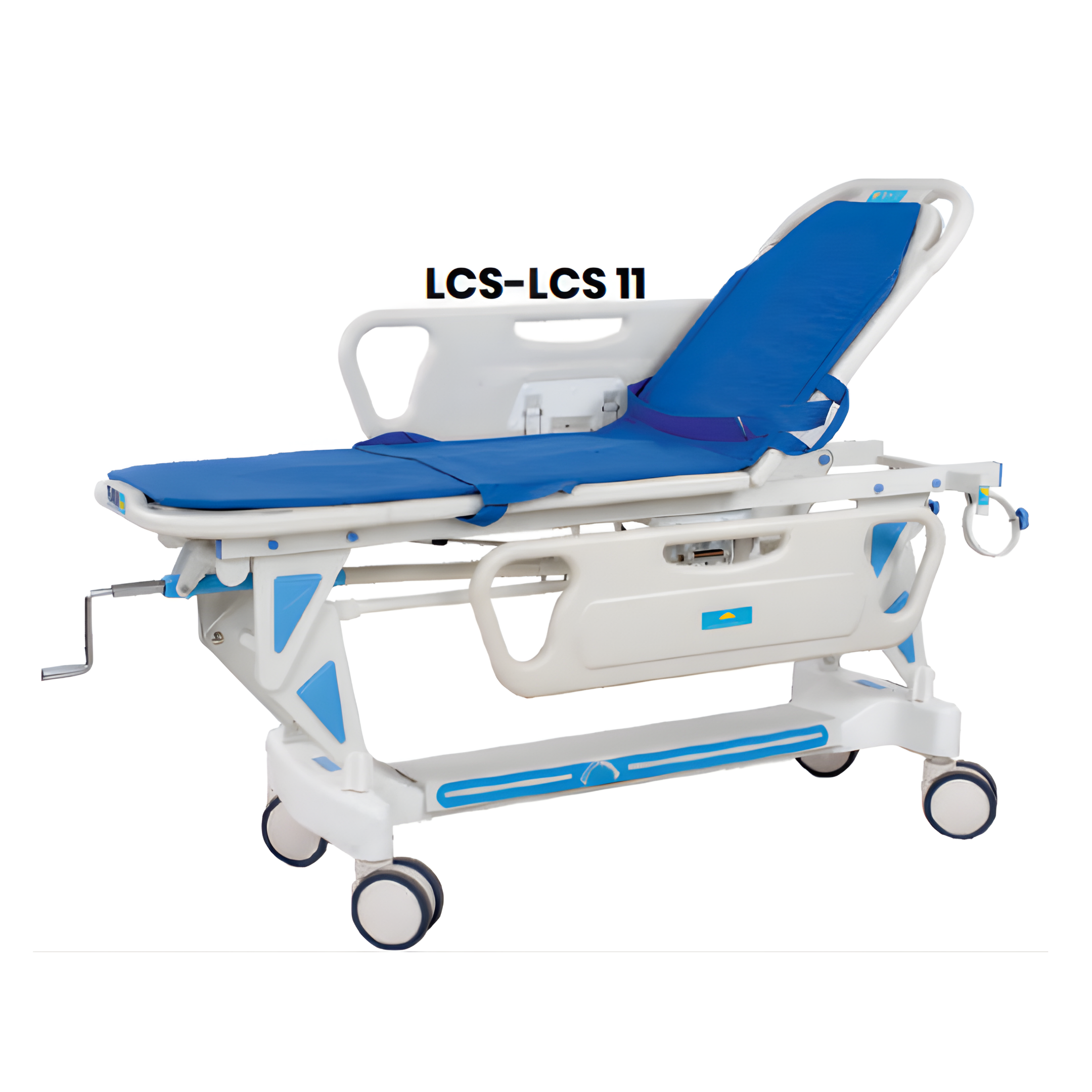

Luxurious Connecting Stretcher

Structure & Build Quality

• Main structure made from high-quality aluminium, auto-pressed in a single process for strength
• Framework made of mild steel, fully pretreated & epoxy powder-coated
• Bottom trolley fully MS-covered
• Two-section PP platform top for durability and easy cleaning

Adjustment & Positioning Systems

• Stretcher lift-up/down via smooth crank mechanism, allowing two single stretchers to align at the same level for easy sliding
• The automatic locking system activates when the top slides into a single stretcher
• Pneumatic backrest for smooth raising
• Hi–Low adjustment operated by smooth crank system with foldable SS handle at the foot end

Safety & Functional Features

• PE engineering-plastic moulded two-piece individual side rails
• Stable movement through 125 mm (5″) central locking castors
• Designed for secure and controlled transfer between stretchers

Dimensions

• Overall Size: 3650 mm (L) × 640 mm (W) × 640–970 mm (H)**
