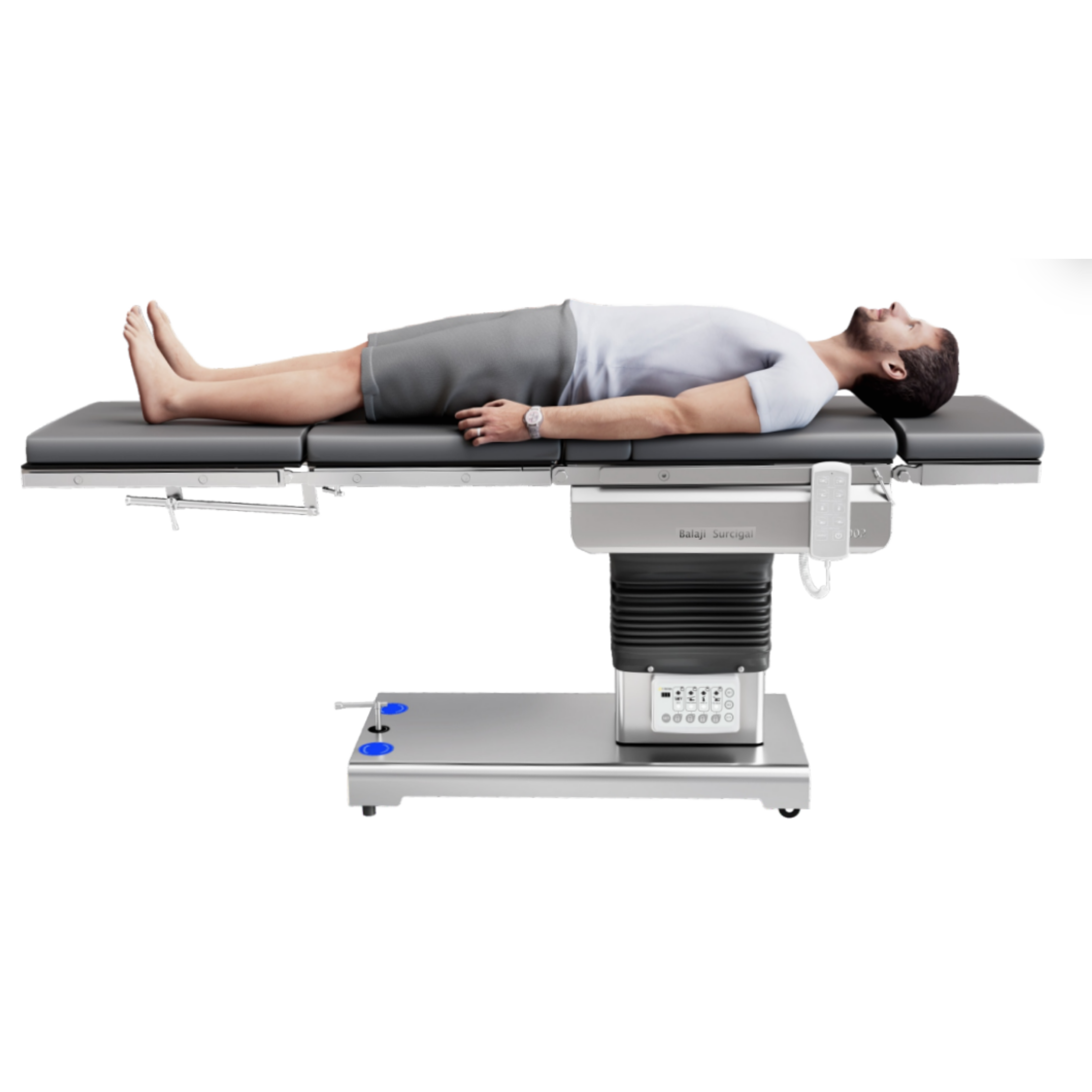

C-Arm Compatible Hydraulic OT Table

Salient Features:

Encentric Pillars.
Stainless Fitting.
Detachable, Head, Leg & Pelvic Section.
Four Sectional Radio-Translucent Top.
Base & Cover Made of Attractive, Easy-to-Clean Stainless Steel.
Sophisticated Mechanics Provide Smooth, Stepless
articulation of the table top for precise patient positioning.
Press Paddle for Height Adjustment.
Concealed Pump.
In Built Kidney Bridge.

Suitable For General Surgery, Urology Surgery, Gynaecology, Laparoscopy, Vascular, Cardiac Surgery, Neurology Surgery, and Plastic Surgery.

Standard Accessories: Anaesthetic Screen, Shoulder Supports with Pad, Arm Boards with Pad, Lateral Support with Pad, Knee Crutches, Waterproof Mattress.

Description

Technical Specifications
Length of Table	1910 mm
Width of Table Top	535 mm
Height ( Min- Max )	750 - 1000 mm
Trendelenburg (Rev.)	25°
Lateral Tilt	± 20°
Back Section	±15°-90°
Head Section	± 45°-90°
Leg Section	± 45°-90°
Floor Locking System	Manual
